4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter

  • 4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter
  • 4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter
  • 4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter
  • 4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter
  • 4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter
  • 4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter
  • 4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter
Tempat asal CINA
Nama merek ANSHI
Sertifikasi ISO9001, SGS
Nomor model AS-ODF-FDB-4B
Kuantitas min Order Bisa berdiskusi
Harga Dapat dinegosiasikan
Waktu pengiriman 10000pcs/minggu

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
Nama Kotak Distribusi Serat Optik Dimensi 140*105*27mm
Kemampuan 4 port Aplikasi Ftth
Bahan SPCC dengan permukaan kemuliaan Warna putih pucat
Sedang mengemas 1 buah/kotak
Menyoroti

4 port FTTH distribution box

,

wall mount fiber optic box

,

FTTH box with SC adapter
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Tinggalkan pesan
Deskripsi Produk
ANSHI 4 Cores Fiber Optic Terminal Box

This box is the interface between drop optical cable and the patch cord connecting customer ONT.
Can used for 4 Termnations.

It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.

Product Features

1. Material: Metal Cold Roll Sheet (SPCC)

2. Cable Port:3 Port

3. Box include the fiber organizerfor splicing and termination of the drop optical fiber cables

4. The box can install max 4pcs SC SX Adapter and 4 cores pigtails

5. Smooth installation with compliant bending radius

6. Connection, fixing and arrangement of drop cables

(1) Easy to re-enter not re-entry kit required

(2) Compliant with cable diameter from 5mm to 10mm

7. Easy installation for drop cable without specific tool

8. Open and re-closed as often as required without using power consumable material or speical tools

9. Corrosion resistance and watertight and able to protect the components from harsh, high heat, dust and humidity environment


Technical Specifications
Item AS-ODF-FDB-4B
Dimensions 140*105*27mm
Entry & Outlet Port 3 Port
Adapter

SC/UPC SM SX Adapter *4 pieces

OR

LC SM DX Adapter *4 pieces

OR

FC Adapter * 4 pieces
Adapter Ports 4 ports
Splitter Compatibility

1x4 PLC Splitter

or

Pigtail
Color Offwhite or Customize
Operating Temperature -25°C to 60°C (5-95% relative humidity)

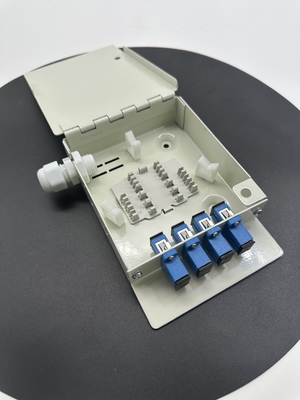

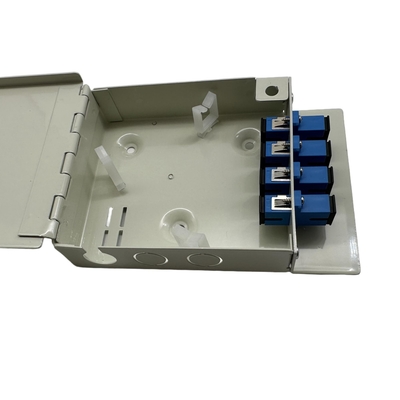

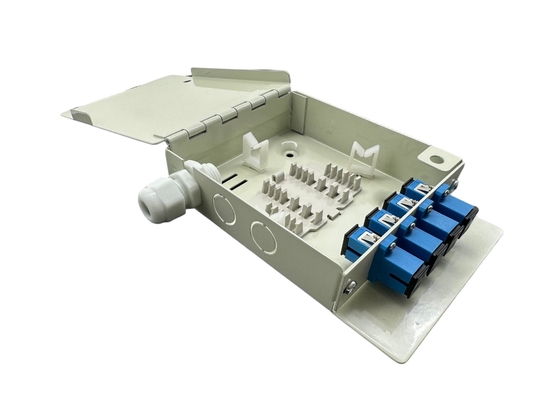

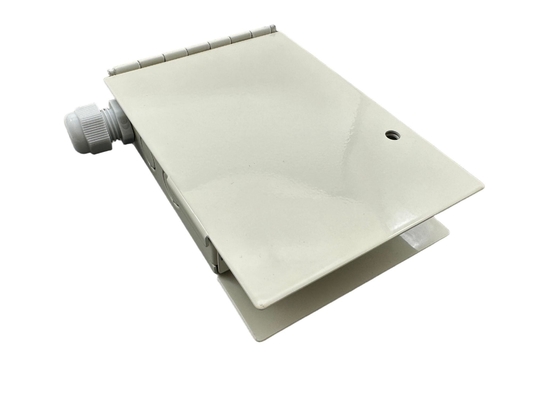

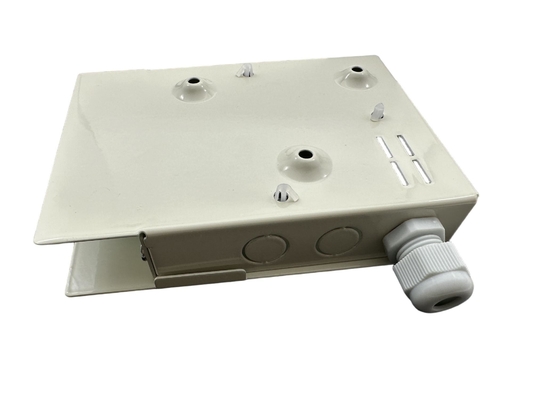

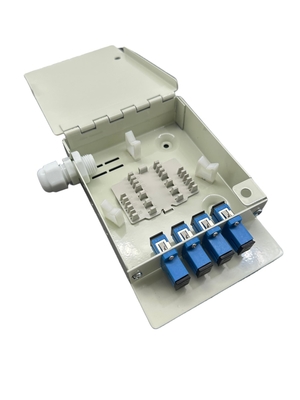

Product Images
